How our pricing works
Here you'll find an overview of the components in a FORCEbit setup and their indicative pricing. On the quote page you'll be able to select quantities and request a tailored offer. Looking to rent instead of buy? Please contact us by email for a tailored rental proposal.
Simulate pricingWhat’s in a FORCEBIT setup?

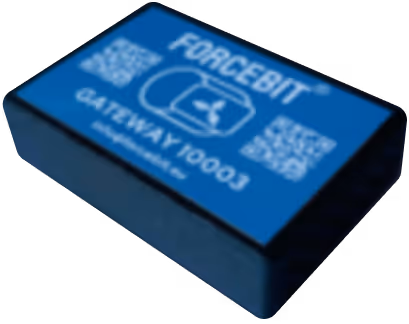

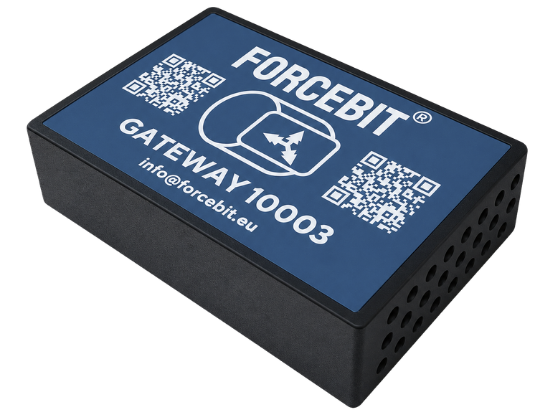

Gateway
First, you need a Gateway to receive data from your sensors.

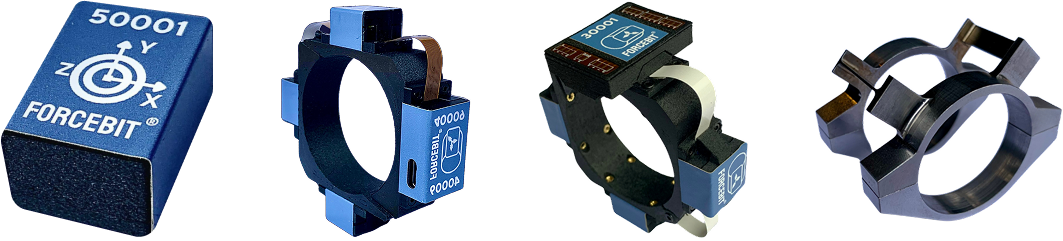

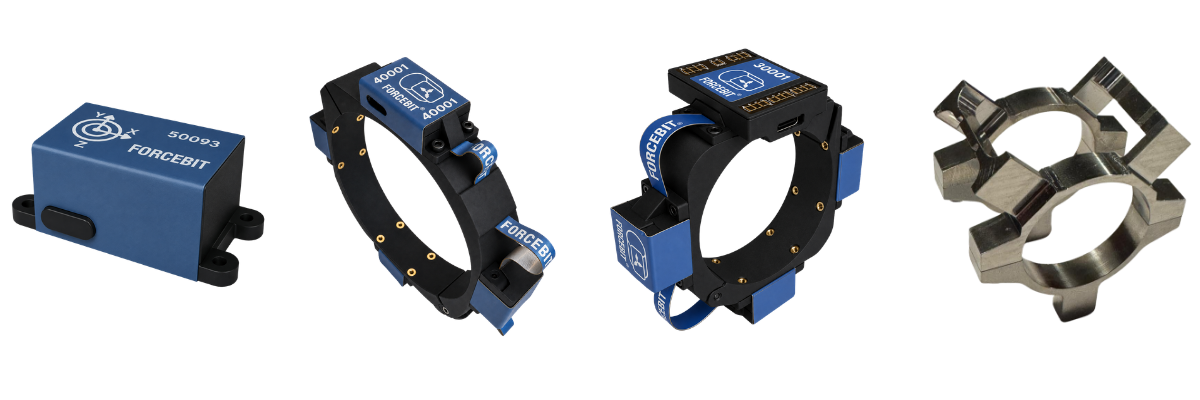

Sensors
Next, choose the sensors you need for your setup.
Pricing
- Receives data for all Forcebit sensors in your setup
- One gateway supports up to 6 sensors
- 10 µs synchronization accuracy
- Powered via USB-C charger or powerbank
- Live data-streaming
- Matlab & Python interfacing
- Export data as .HDF5 or .CSV-files for easy analysis
- No internet connection needed
- Measures torque, bending, angle velocity & rotary acceleration
- Add-on shaft-ready design for a fixed diameter
- Installation under 15 minutes
- No system modifications needed
- Measures tri-axial acceleration up to 16 kHz
- Easy installation with glue/double-sided tape/magnets
- 50h+ battery life
- Small (12.5 x 19.1 x 23.7 mm³) & lightweight (8 g) design
- Measures angle, velocity & rotary acceleration
- Installation & calibration under 3 minutes
- Modular shaft-ready design for different diameters
- Balanced, small (18mm width) & lightweight design
- Measures angle, velocity & rotary acceleration
- Supports strain gauges and temperature sensors
- Modular shaft-ready design for different diameters
- Balanced, small (34mm width) & lightweight design
FAQs
Can’t find what you’re looking for? Reach out and we’ll get you a clear answer.
Pricing
What is included in the listed prices?
The listed prices apply to the standard sensor configurations shown on this page. Each ACCbit and TELbit sensor is supplied with a collar for one specified shaft diameter. Additional collars and application-specific mechanical configurations are priced separately.
A FORCEBIT Gateway is required to receive the wireless measurement data. The acquisition software is included with every gateway at no additional cost.
External sensors, such as strain gauges, Pt1000 sensors and thermocouples for TELbit, are not included unless explicitly specified. Sensor installation, custom engineering, shipping and any applicable taxes are detailed separately in the quotation.
Do I need a separate FORCEBIT Gateway for every sensor?
No. One FORCEBIT Gateway can communicate with multiple FORCEBIT sensors and synchronize their measurements with an accuracy of approximately 10 µs.
A gateway supports up to six sensors, provided that the total aggregated sampling rate remains within the system limit. The achievable configuration therefore depends on the number of sensors and their selected sampling rates.
Are software licences or subscriptions required?
No. The FORCEBIT acquisition software is included with every gateway at no additional cost. There are no recurring licence or subscription fees, and software updates are provided free of charge.

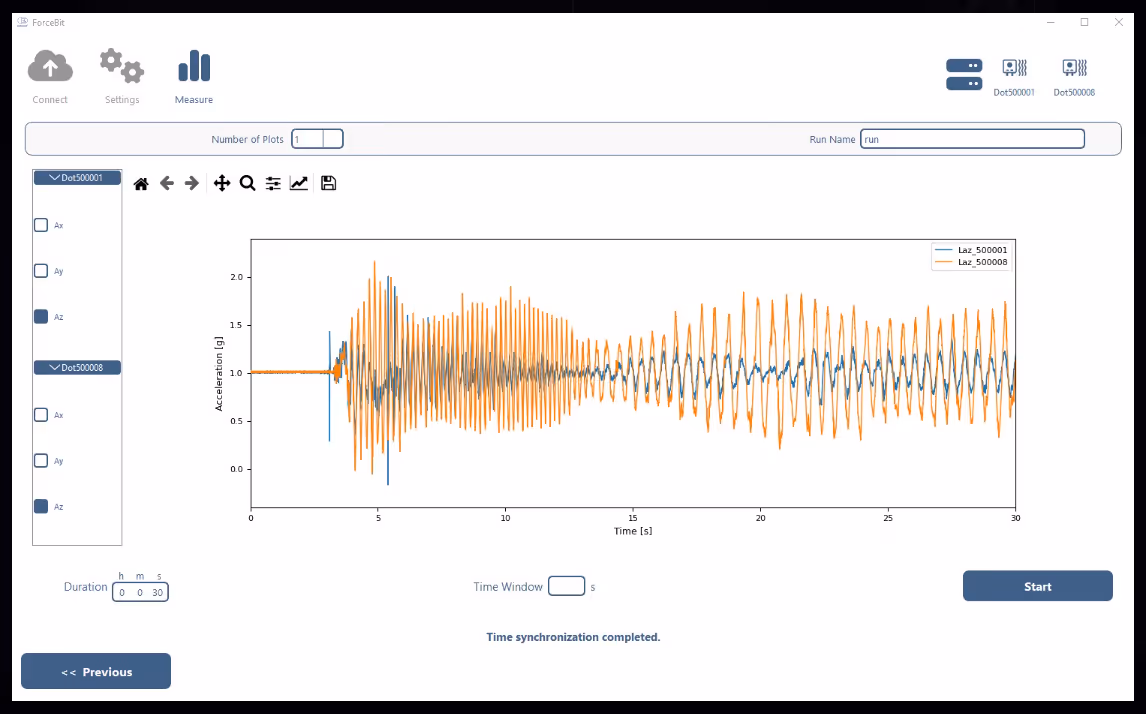

The software can configure the sensors, visualize and store measurement data, and export the results as HDF5 or CSV files for further analysis.
Do you offer rentals or volume pricing?
Yes. Selected measurement sets can be rented for testing or temporary measurement campaigns. A standard rental set consisting of one ACCbit or TELbit sensor and one FORCEBIT Gateway can typically be rented for one month for €500 with special offers for Belgium and the Netherlands. Availability and conditions may vary by region and application.
Published quantity discounts apply to selected standard products. Additional volume pricing may be available for larger orders or long-term projects, depending on the quantity, configuration and project scope.
How are custom configurations and FORCEbit systems priced?
Custom configurations are quoted individually based on the required hardware, mechanical design, measurement channels, gain settings, calibration and software requirements.
This includes custom TELbit channel configurations and FORCEbit systems designed for a particular shaft geometry, material and measurement range. A complete FORCEbit setup, including the sensor, integrated TELbit telemetry and a FORCEBIT Gateway, typically has an indicative price between €9,000 and €10,000.
Contact us with your application requirements to receive a detailed quotation.
